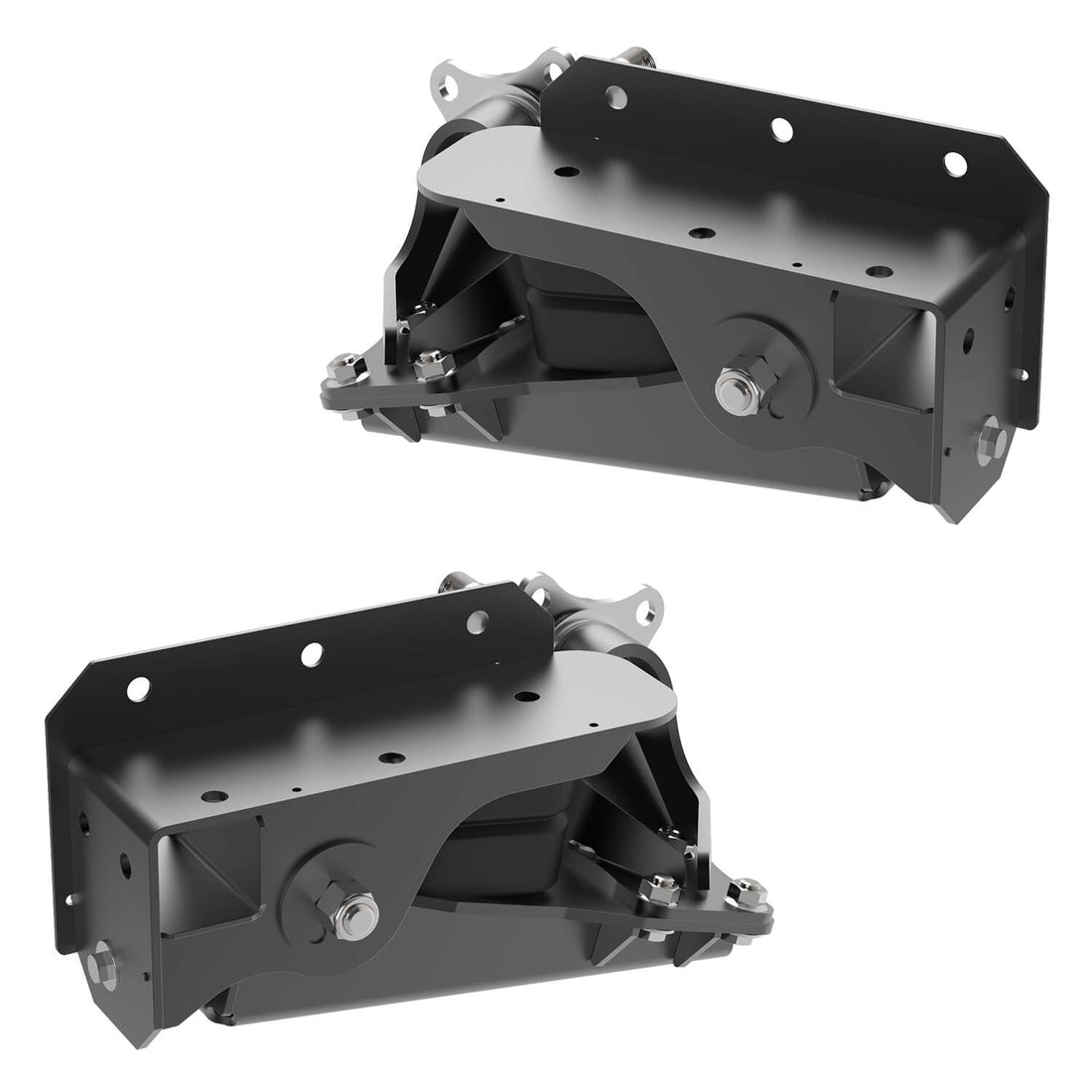

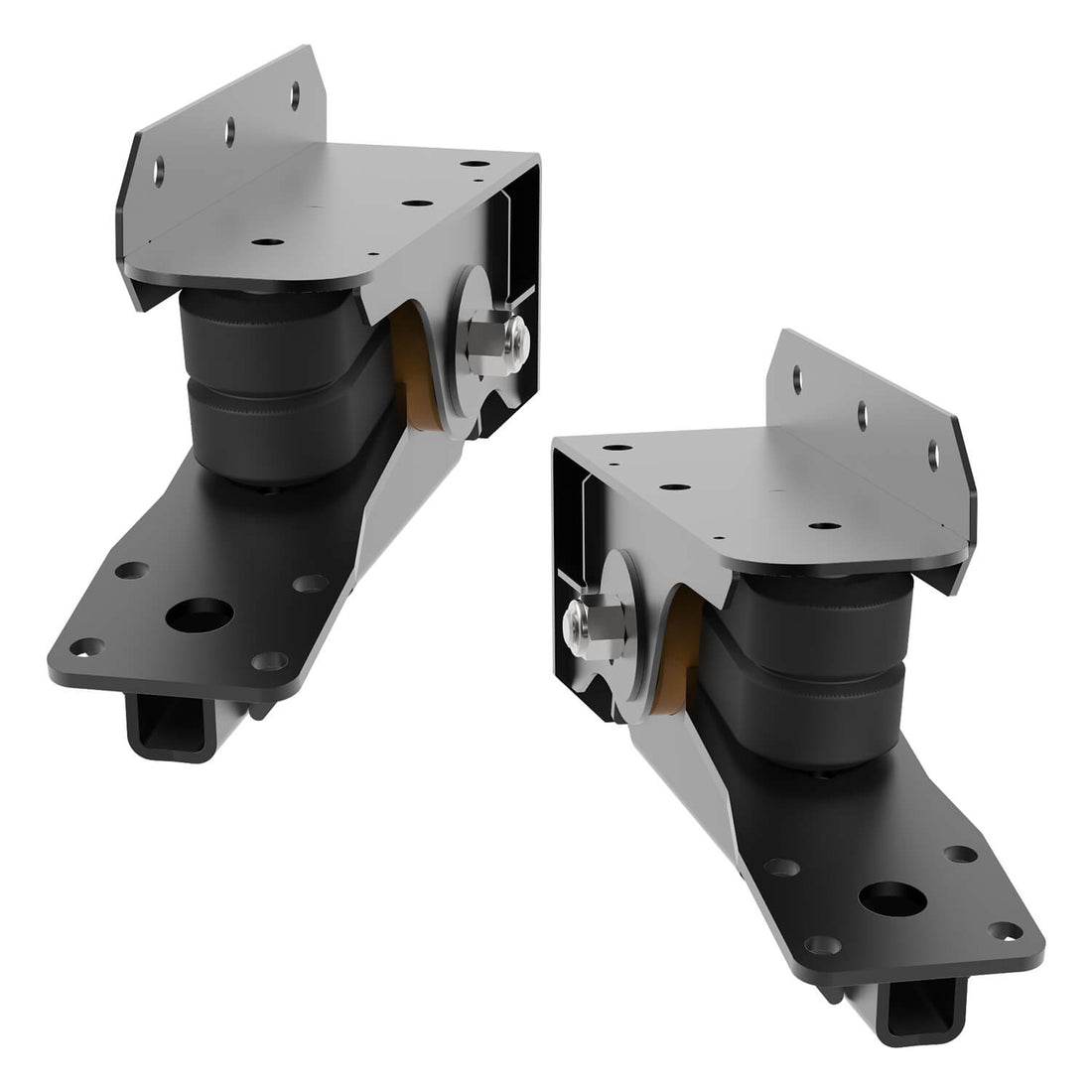

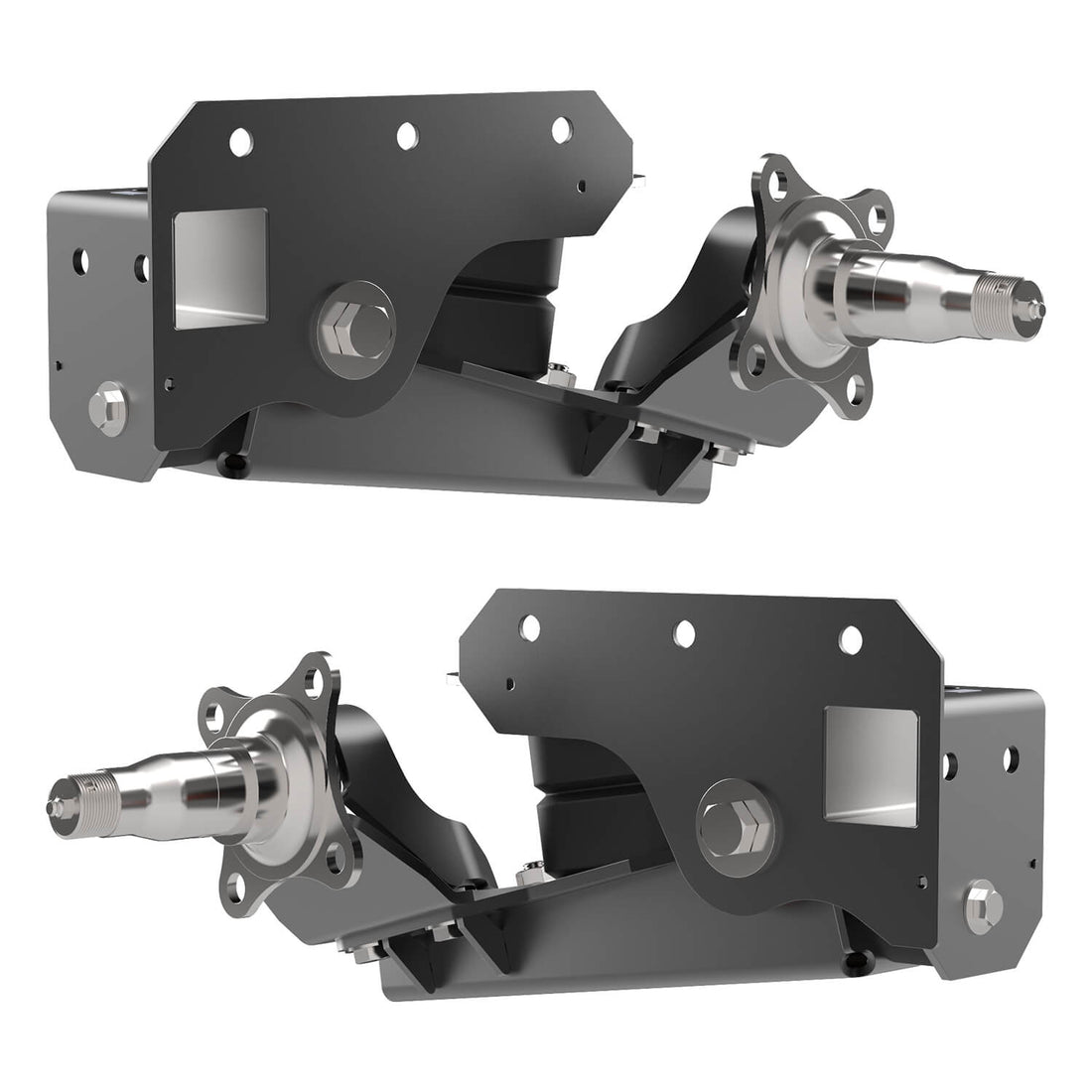

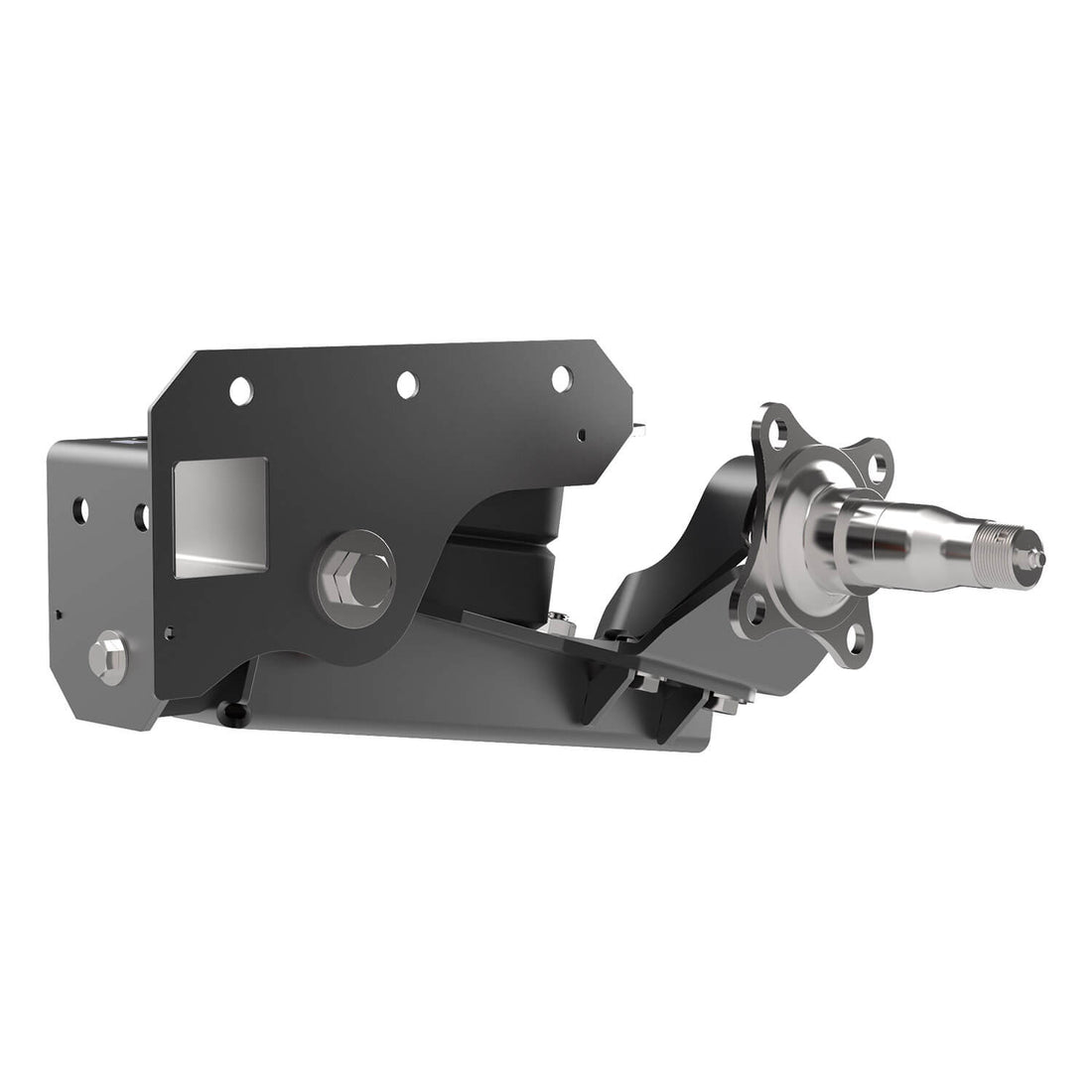

1200 lb Axle-Less Trailer Suspension w/ Brake Flange
FREE Ground Shipping on Orders Over $99
3-Year Warranty
Available to ship within 2 weeks.
Looking for increased versatility for your utility, landscape, or construction trailer? Designing a trailer to have its deck drop down to the ground? Working on another type of light-fit custom or retrofit rig?
Our Axle-Less trailer suspension kits offer ultimate creative freedom for your custom trailer build.
With no through axle, there’s no need to worry about ordering the correct axle dimensions. Shims are also supplied giving you the flexibility to adjust, if necessary, the suspension alignment and camber specific to your trailer frame. And polyurethane bushings — used at the pivot point on the control arm — hold the pin firmly in place, resulting in better stability and a more controlled alignment with each moving component.
Axle-Less trailer suspension features two Aeon® rubber springs, one for jounce and one for rebound, absorbing road shocks and allowing for a quiet, smooth ride, whether on the highway or down a dirt road.
Durable and weather-resistant, these suspensions are built to last in any environment, from the heat of the Outback to the sub-freezing winters of Canada.
Each Axle-Less trailer suspension kit comes with both driver and passenger side to give you a full suspension.
Need something more suited for off-roading and overlanding? We recommend our HD series of Axle-Less trailer suspensions.
Key Features
Specs
Choosing A Trailer Suspension
Each Axle-Less trailer suspension kit comes with both driver and passenger side to give you a full suspension.
What's Included
How to Install
Suspension Capacity
Ride Height

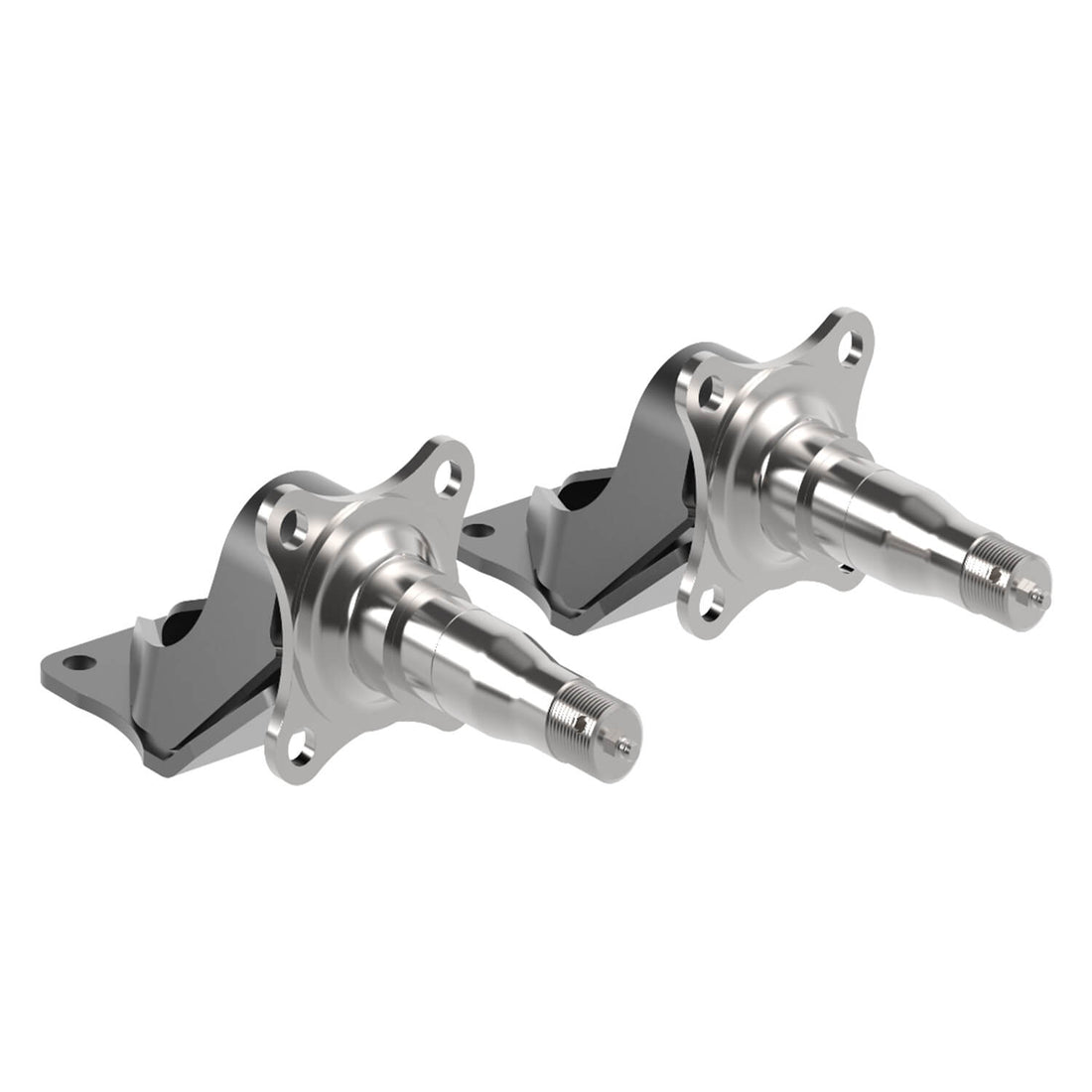

Spindle Arm Length
Brake Flange
We offer a 3-year warranty on our Axle-Less trailer suspensions.
Covered under this warranty is the replacement of the failed part. This warranty does not include labor, freight, collateral damage, or any ancillary costs which may arise as a result of the failed part. We retain the right to make our own inspection of the failed part to determine the validity of the claim.
FREE Ground Shipping on Orders Over $99
Free ground shipping is available in the contiguous United States on all orders over $99. Normal processing time is between 1 – 2 business days from placing the order.
We make every effort to ship the order within this processing time; however, no guarantees are expressed or implied.
Returns
If you’re not happy with your Timbren product, we want to remedy that. If our customer service team can’t find a solution for you, you can return your Axle-Less trailer suspension for a refund within 100 days of purchase. Product cannot have been mounted to your trailer, and return shipping is not covered by Timbren.
Axle-Less trailer suspensions are a leader in the industry for a reason — more than one reason, actually.
Axle-Less Trailer Suspension |
Torsion Suspension |
Leaf Spring Suspension |
Trailing Arm Style Suspension |
|
---|---|---|---|---|
Price |
$784+ |
$649+ |
$300+ |
$1,800+ |
Requires Axle |
No |
No |
Yes |
No |
Improved Ride Quality |
||||
Durability |
||||
Off-Road Capable |
||||
Maximum Ground Clearance |
Your questions, answered
You want all the info before choosing the right trailer suspension for you. And we want to help.
If you need maximum ground clearance for off-roading, Axle-Less Trailer Suspension is the way to go. If you don’t require ground clearance and want to utilize axles as part of a retrofit, the Silent-Ride Trailer Suspension is your best option.
Axle-Less trailer suspensions are fully independent and do not require an axle, allowing for ultimate control of your rig.
A torsion trailer suspension, on the other hand, is housed within an axle tube and isn’t designed to hold up to the abuse and rigors of off-road or overland travel.
Our jounce and rebound springs are made from natural rubber, with all the unique characteristics that make our Aeon® springs a leader in towing and hauling.
The capacity rating represents one complete Axle-Less trailer suspension (i.e. both sides).
Yes. Some maintenance is required, such as greasing the pivot bushings and wheel bearings.
For detailed maintenance information, refer to the maintenance notes included with the installation instructions.
To begin, you’ll need to make sure the frame is perfectly square. Additionally, some trailer frames require additional support, like an extension plate to allow bolts to be installed vertically. This would eliminate the use of a cross-member, allowing you to achieve maximum ground clearance.
Have questions? Reach out to one of our resident suspension techs about your trailer project to determine whether Axle-Less trailer suspension is right for you.
